液压零配件
GM05~07VA/GM08~23 /GM30H/GM35VA /GM38VB

(NABTESCO)GM05VA/GM07VA(DAEWOO DH55、KOMATSU 60-7行走)/GM08(KOMATSU 60-3/5 TRAVEL MOTOR)/GM09(MSPG06-025/PC60-7TRAVEL MOTOR)GM10/GM17(PC120-3/5 TRAVEL MOTOR)/GM18/GM23 /GM30H/GM35VA /GM38VB(SK200-8、KATO 1023-3TRAVEL MOTOR)

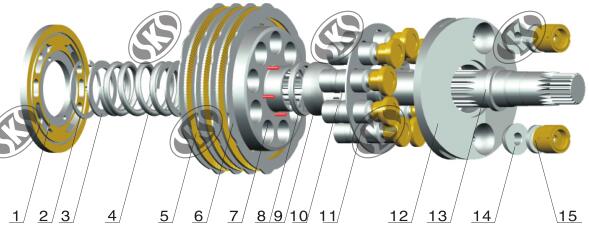

ITEM DESCRIPTION QUANTITY
1   VALVE PLATE  1
2   SNAP RING 1
3   SPACER 2
4   SPRING 1
5   FRICTION PLATE 3
6   SEPARATION PLATE 4
7   CYLINDER BLOCK  1
8   SPACER 1
9   BALL GUIDE 1
10   PISTON SHOE 9
11   RETAINER PLATE 1
12   SWASH PLATE 1
13   DRIVE SHAFT 1
14   BALL 2
15   YOKE SHOE 2
