(CAT)CAT320C DOUBLE PUMP

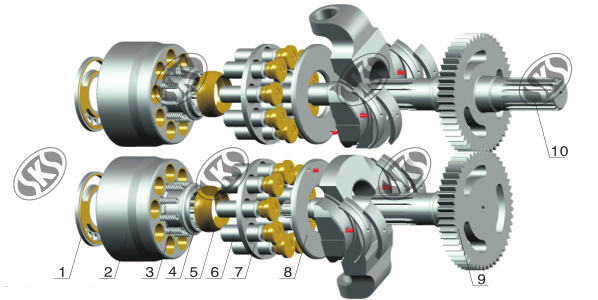

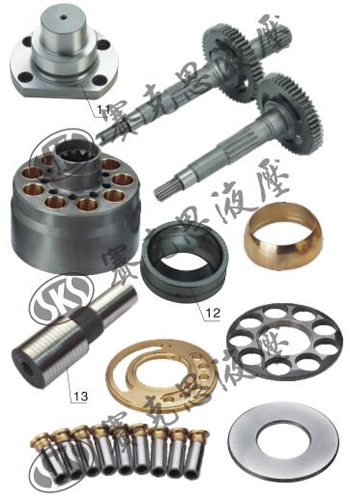

| ITEM | DESCRIPTION | QUANTITY |
| 1 | VALVE PLATE LEFT | 1 |
| VALVE PLATE RIGHT | 1 | |
| 2 | CYLINDER BLOCK | 2 |
| 3 | SPRING | 18 |
| 4 | WASHER | 2 |
| 5 | BALL GUIDE | 2 |
| 6 | PISTON SHOE | 18 |
| 7 | RETAINER PLATE | 2 |
| 8 | THRUST PLATE | 2 |
| 9 | DRIVEN SHAFT | 1 |
| 10 | DRIVE SHAFT | 1 |
| 11 | AXIAL SHAFT | 4 |
| 12 | BEARING | 4 |
| 13 | SERVO PISTON | 1 |
