Product features and Applications
SA1V45/85 series is middle-pressure and swash-plate type piston pump. It has constant pressure control, constant flow control, constant power control, and remote pressure regulating control. It has following
features: simple structure, small in size, light in weight, low noise level and long life. It's widely used in mechanical machinery, mining machinery, industrial machinery and construction machinery.
technical parameter
| Model |
SA1V28 |
SA1V45 |
SA1V60 |
SA1V085 |
| Replace |
(A10VSO28) |
(A10VSO45) |
(A10VSO60) |
(A10VSO85) |
| Displacement |
28ml/r |
45ml/r |
60ml/r |
85ml/r |
| Max. Speed |
3000 r/min |
2600 r/min |
2700 r/min |
2500 r/min |
| Rated Pressure |
250bar |
| Max. Pressure |
315bar |

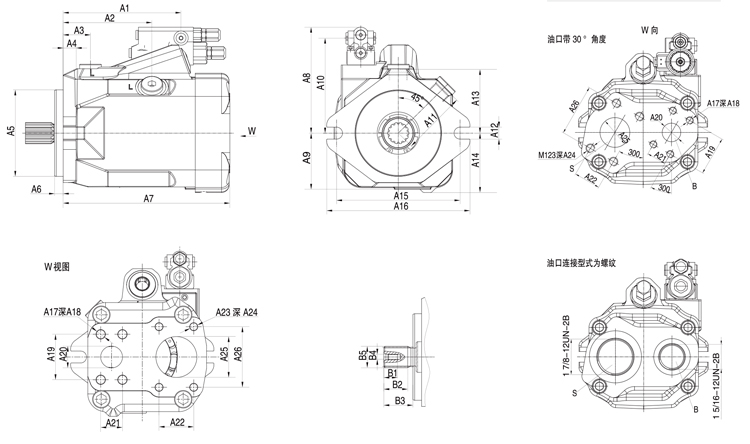

Installation size
| Specification |
A1 |
A2 |
A3 |
A4 |
A5 |
A6 |
A7 |
A8 |
A9 |
| SA1V028 |
140 |
90 |
27 |
12 |
Ф101.6 |
9.5 |
205 |
123.5 |
73 |
| SA1V045 |
151.4 |
99 |
30 |
12 |
Ф101.6 |
9.5 |
190 |
131.5 |
68.5 |
| SA1V060 |
151.5 |
117 |
40 |
15 |
Ф127 |
12.7 |
208 |
138 |
73 |
| SA1V085 |
171.5 |
130 |
40 |
20 |
Ф127 |
12.7 |
244.3 |
155.5 |
82.5 |
| |
|
|
|
|
|
|
|
|
|
| Specification |
A10 |
A11 |
A12 |
A13 |
A14 |
A15 |
A16 |
A17 |
A18 |
| SA1V028 |
107 |
69 |
14.3 |
66 |
73 |
146 |
172 |
M10 |
17 |
| SA1V045 |
116.5 |
78 |
14.3 |
77 |
70 |
146 |
172 |
M10 |
17 |
| SA1V060 |
122 |
79 |
14 |
88 |
83 |
114.5 |
212 |
M10 |
17 |
| SA1V085 |
139.5 |
95 |
17.5 |
93.5 |
28 |
181 |
210 |
M14 |
19 |
| |
|
|
|
|
|
|
|
|
|
| Specification |
A19 |
A20 |
A21 |
A22 |
A23 |
A24 |
A25 |
A26 |
|
| SA1V028 |
47.6 |
20 |
22.2 |
30.2 |
M10 |
17 |
32 |
58.7 |
|
| SA1V045 |
52.4 |
25 |
26.2 |
35.7 |
M12 |
20 |
38 |
69.9 |
|
| SA1V060 |
52.4 |
25 |
26.2 |
42.9 |
M12 |
20 |
50 |
77.8 |
|
| SA1V085 |
66.7 |
32 |
31.8 |
50.8 |
M12 |
17 |
60 |
88.9 |
|
| |
|
|
|
|
|
|
|
|
|
| Specification |
S |
|
|
| A1 |
A2 |
A3 |
A4 |
A5 |
|
|
| SA1V028 |
16 |
25 |
41 |
1/4-20UNC |
16/32-13T |
|
|
| SA1V045 |
16 |
30 |
45.9 |
1/4-20UNC |
12/24-14T |
|
|
| SA1V060 |
19 |
39.5 |
55.4 |
5/16-18UNC |
16/32-15T |
|
|
| SA1V085 |
/ |
/ |
/ |
/ |
/ |
|
|
| |
|
|
|
|
|
|
|
|
|
| Specification |
U |
| B1 |
B2 |
B3 |
B4 |
B5 |
Z |
a |
| SA1V028 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
| SA1V045 |
16 |
25 |
45.9 |
1/4-20UNC |
16/32DP |
13T |
30° |
| SA1V060 |
16 |
25 |
41 |
1/4-20UNC |
16/32DP |
15T |
| SA1V085 |
19 |
35 |
55.4 |
5/16-18UNC |
12/24DP |
14T |
