Product features and Applications

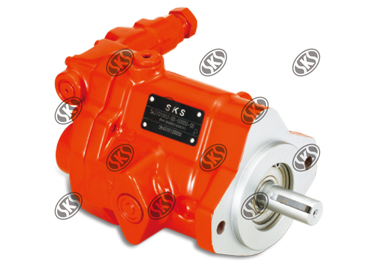

SA3V series is middle-pressure swash plate type piston pump.
It has low noise and smooth. It's widely used in variable industrial machinery.
technical parameter
| Model |
SA3V010 |
SA3V013 |
SA3V020 |
SA3V032 |
SA3V040 |
SA3V045 |
| Replace |
(PVQ10) |
(PVQ13) |
(PVQ20) |
(PVQ32) |
(PVQ40) |
(PVQ45) |
| Displacement |
10.5 mL/r |
13.8 mL/r |
21.1 mL/r |
32.9 mL/r |
41 mL/r |
45.1 mL/r |
| Direction Of Rotation(View From Shaft End) |
R:Clockwise L: Counter Clockwise |
| Rated Speed |
1800 r/min |
| Inlet Pressure |
0.1 MPa |
| Rated Pressure |
21 MPa |
14 MPa |
21 MPa |
14 MPa |
21 MPa |
14 MPa |
| Recommended Oil |
L-HM46 (Summer) L-HM32 (Winter) |
| Woking Mode |
Open Circuit System |

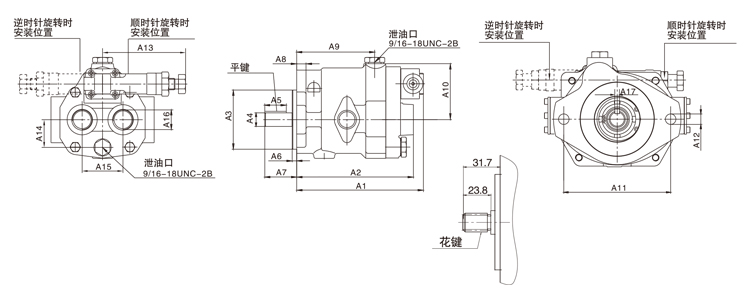

Installation size
| Specification |
A1 |
A2 |
A3 |
A4 |
A5 |
A6 |
A7 |
A8 |
A9 |
| SA2V005 |
177 |
163 |
Ф82.55 |
Ф19.05 |
25.5 |
6.5 |
44.8 |
15.4 |
108.7 |
| SA2V006 |
177 |
163 |
Ф82.55 |
Ф19.05 |
25.5 |
6.5 |
44.8 |
15.4 |
108.7 |
| SA2V010 |
208 |
190 |
Ф101.6 |
Ф22.22 |
31.75 |
9.5 |
58.9 |
12.7 |
123.7 |
| SA2V015 |
208 |
190 |
Ф101.6 |
Ф22.22 |
31.75 |
9.5 |
58.9 |
12.7 |
123.7 |
| SA2V020 |
237 |
221.7 |
Ф127 |
Ф31.75 |
31.75 |
9.5 |
58.5 |
16 |
123.4 |
| SA2V029 |
237 |
221.7 |
Ф127 |
Ф31.75 |
31.75 |
9.5 |
58.5 |
16 |
123.4 |
| |
|
|
|
|
|
|
|
|
|
| Specification |
A10 |
A11 |
A12 |
A13 |
A14 |
A15 |
A16 |
A17 |
|
| SA2V005 |
78.1 |
106.4 |
116 |
Ф11.1 |
38.1 |
57.2 |
1 1/16 |
4.8 |
|
| SA2V006 |
78.1 |
106.4 |
116 |
Ф11.1 |
38.1 |
57.2 |
1 1/16 |
4.8 |
|
| SA2V010 |
82.5 |
146 |
137.1 |
Ф14.3 |
49.3 |
66.5 |
1 5/8 |
6.35 |
|
| SA2V015 |
82.5 |
146 |
137.1 |
Ф14.3 |
49.3 |
66.5 |
1 5/8 |
6.35 |
|
| SA2V020 |
90 |
181 |
73 |
Ф17.5 |
61.2 |
82.5 |
1 5/8 |
7.94 |
|
| SA2V029 |
90 |
181 |
73 |
Ф17.5 |
61.2 |
82.5 |
1 5/8 |
7.94 |
|
