Product features and Applications
SC3V Series is swash plate design pump which used in open circuit operation. It has constant pressure, flow,power,hydraulic &Romote pressure regulating control.
technical parameter
| Model |
SC3V040 |
SC3V071 |
SC3V125 |
SC3V180 |
SC3V0250 |
SC3V355 |
| Replace |
(A4VSO40) |
(A4VSO71) |
(A4VSO125) |
(A4VSO180) |
(A4VSO250) |
(A4VSO355) |
| Displacement |
40 mL/r |
71 mL/r |
125 mL/r |
180 mL/r |
250 mL/r |
355 mL/r |
| Direction Of Rotation(View From Shaft End) |
R:Clockwise L: Counter Clockwise |
| Rated Speed |
1500 r/min |
1500 r/min |
1500 r/min |
1500 r/min |
1000 r/min |
1000 r/min |
| Max. Speed |
2600 r/min |
2200 r/min |
1800r/min |
1800 r/min |
1500 r/min |
1500 r/min |
| Oil Speed |
0.8~3 bar |
| Rated Pressure |
35Mpa |
| Recommended Oil |
L-HM46 (Summer) L-HM32 (Winter) |
| Woking Mode |
Open Circuit System |

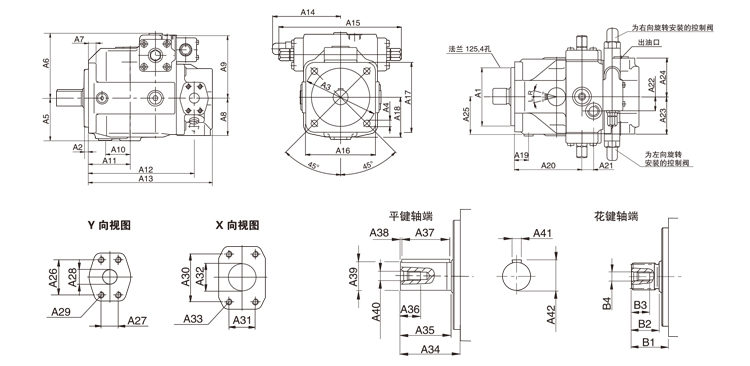

Installation size
| Specification |
A1 |
A2 |
A3 |
A4 |
A5 |
A6 |
A7 |
A8 |
A9 |
A10 |
| SC3V040 |
Φ125 |
8 |
Φ160 |
Φ15 |
91 |
140 |
18 |
80 |
135 |
52 |
| SC3V071 |
Φ140 |
8 |
Φ180 |
Φ15 |
106 |
157 |
18 |
92.5 |
152 |
61 |
| SC3V125 |
Φ160 |
8 |
Φ200 |
Φ20 |
120.5 |
191 |
22 |
112.5 |
186 |
70 |
| SC3V180 |
Φ160 |
8 |
Φ200 |
Φ20 |
121 |
191 |
22 |
116 |
186 |
70 |
| SC3V250 |
Φ224 |
8 |
Φ280 |
Φ24 |
151 |
238 |
30 |
144 |
233 |
90 |
| SC3V355 |
Φ224 |
8 |
Φ280 |
Φ24 |
151 |
238 |
30 |
144 |
233 |
90 |
| |
|
|
|
|
|
|
|
|
|
|
| Specification |
A11 |
A12 |
A13 |
A14 |
A15 |
A16 |
A17 |
A18 |
A19 |
A20 |
| SC3V040 |
90 |
227 |
266 |
147 |
260 |
150 |
150 |
85 |
30 |
144 |
| SC3V071 |
101 |
254 |
295 |
- |
296 |
170 |
170 |
97 |
27 |
166 |
| SC3V125 |
125 |
310 |
355 |
- |
354 |
200 |
200 |
114.5 |
33 |
203 |
| SC3V180 |
125 |
318 |
379 |
- |
354 |
200 |
200 |
114.5 |
33 |
203 |
| SC3V250 |
150 |
380 |
435 |
- |
424 |
265 |
265 |
144.5 |
44 |
248 |
| SC3V355 |
150 |
393 |
488 |
- |
424 |
265 |
265 |
144.5 |
44 |
248 |
| |
|
|
|
|
|
|
|
|
|
|
| 规格型号 |
A21 |
A22 |
A23 |
A24 |
A25 |
A26 |
A27 |
A28 |
A29 |
A30 |
| SC3V040 |
25 |
30 |
80 |
80 |
79 |
50.8 |
23.8 |
Φ20.5 |
M10 |
69.9 |
| SC3V071 |
27 |
34 |
92.5 |
92.5 |
92 |
57.2 |
27.8 |
Φ25 |
M12 |
77.8 |
| SC3V125 |
14 |
50 |
112.5 |
112.5 |
112 |
66.7 |
31.8 |
Φ31 |
M14 |
88.9 |
| SC3V180 |
14 |
50 |
120 |
120 |
112 |
66.7 |
31.8 |
Φ31 |
M14 |
106.4 |
| SC3V250 |
17 |
55 |
144 |
144 |
144 |
79.4 |
36.5 |
Φ40 |
M16 |
106.4 |
| SC3V355 |
17 |
55 |
148 |
148 |
144 |
79.4 |
36.5 |
Φ40 |
M16 |
130.2 |
| |
|
|
|
|
|
|
|
|
|
|
| Specification |
A31 |
A32 |
A33 |
A34 |
A35 |
A36 |
A37 |
A38 |
A39 |
A40 |
| SC3V040 |
35.7 |
40 |
M12 |
68 |
58 |
22 |
56 |
1.5 |
Φ32 |
M10 |
| SC3V071 |
42.9 |
50 |
M12 |
80 |
70 |
28 |
68 |
1.5 |
Φ40 |
M12 |
| SC3V125 |
50.8 |
63 |
M12 |
92 |
82 |
36 |
80 |
1.5 |
Φ50 |
M16 |
| SC3V180 |
61.9 |
75 |
M16 |
92 |
82 |
36 |
80 |
1.5 |
Φ50 |
M16 |
| SC3V250 |
61.9 |
75 |
M16 |
115 |
105 |
42 |
100 |
3 |
Φ60 |
M20 |
| SC3V355 |
77.8 |
100 |
M16 |
115 |
105 |
42 |
100 |
4.5 |
Φ70 |
M20 |
| |
|
|
|
|
|
|
|
|
|
|
| Specification |
A41 |
A42 |
A43 |
A44 |
A45 |
A46 |
|
|
|
|
| SC3V040 |
10 |
35 |
46 |
36 |
22 |
M10 |
|
|
|
|
| SC3V071 |
12 |
43 |
55 |
45 |
28 |
M12 |
|
|
|
|
| SC3V125 |
14 |
53.5 |
64 |
54 |
36 |
M16 |
|
|
|
|
| SC3V180 |
14 |
53.5 |
64 |
54 |
36 |
M16 |
|
|
|
|
| SC3V250 |
18 |
64 |
80 |
70 |
42 |
M20 |
|
|
|
|
| SC3V355 |
20 |
74.5 |
92 |
82 |
42 |
M20 |
|
|
|
|
