Hydraulic Components

Product features and Applications
SA1V series is middle-pressure and swash plate type piston pump. It has constant-pressure control, constant flow control, constant power control, and remote pressure regulating control. It has following
features: simple structure, small in size, light in weight, low noise level and long life. It's widely used in mechanical machinery, mining machinery, industrial machinery and construction machinery.
technical parameter

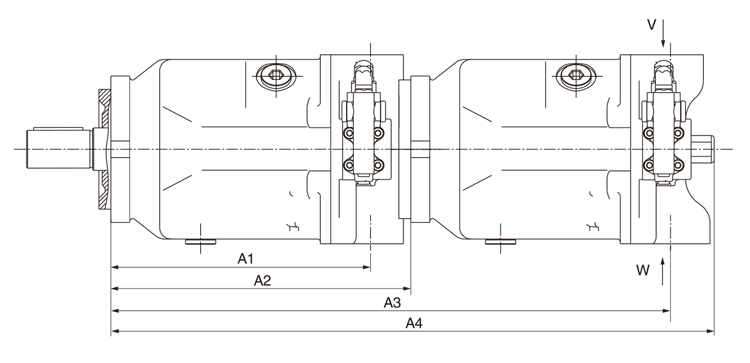

Installation size


   Type
SA1V018 SA1V028
A1 A2 A3 A4 A1 A2 A3 A4
SA1V018 145 182 327 377 165 204 349 399
SA1V028 / / / / 165 204 369 410
SA1V045 / / / / / / / /
SA1V071 / / / / / / / /
SA1V100 / / / / / / / /
SA1V140 / / / / / / / /


   Type
SA1V045 SA1V071
A1 A2 A3 A4 A1 A2 A3 A4
SA1V018 184 229 374 424 217 267 412 462
SA1V028 184 229 394 435 217 267 432 473
SA1V045 184 229 413 448 217 267 451 486
SA1V071 / / / / 217 267 484 526
SA1V100 / / / / / / / /
SA1V140 / / / / / / / /


  Type
SA1V0100 SA1V0140
A1 A2 A3 A4 A1 A2 A3 A4
SA1V018 275 338 483 533 275 350 495 545
SA1V028 275 338 503 544 275 350 514 556
SA1V045 275 338 522 557 275 350 534 569
SA1V071 275 338 555 597 275 350 567 609
SA1V100 275 338 613 668 275 350 625 680
SA1V140 / / / / 275 350 625 687



Rear cover measument for pump in series ( 16 Models)

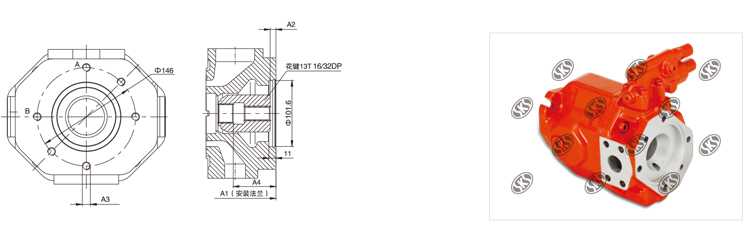

Flange  101-2(ISO-3901-1), used in assembling 13T spline-shaft SA1V028 pump.

Specification A1 A2 A3 A4
SA1V028 204 9 M10 47
SA1V045 229 9 M10 53
SA1V071 267 9 M10 61
SA1V100 338 9 M10 65
SA1V140 350 9 M10 77

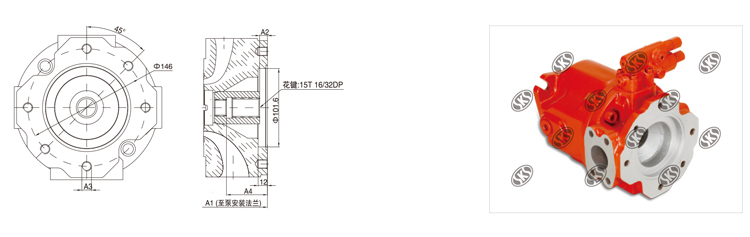

Flange  101-2(ISO-3901-1), used in assembling 13T spline-shaft SA1V028 pump.

Specification A1 A2 A3 A4
SA1V045 229 9 M12 53
SA1V071 267 8 M12 61
SA1V100 338 10 M12 65
