Hydraulic Components
Product features and Applications
SC4D series axial piston motor quantitative mainly use the static hydraulic transmission, of the closed loop through adjust the Angle of inclined plate mechanical, traffic can be adjusted;With long life, small volume, light weight.
Mainly used in agricultural machinery and small engineering machinery.
Mainly used in agricultural machinery and small engineering machinery.
technical parameter
| Model | 41×2+20ml/r |
| Replace | (TA1919) |
| Turn | Direction Of Rotation（View From Shaft End） |
| Rated Speed | 2300 r/min |
| Rated Pressure | 21 MPa |
| Max. Speed | 2800 r/min |
| Max. Pressure | 21MPa |

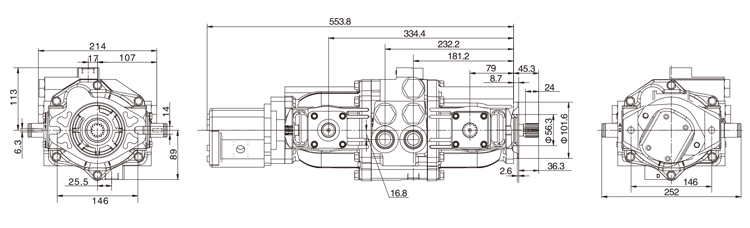

Installation size
